Vendor: Cisco
Certifications: ICND2
Exam Name: Interconnecting Cisco Networking Devices Part 2 (ICND2 v3.0)
Exam Code: 200-105
Total Questions: 204 Q&As
QUESTION 1
A network administrator is troubleshooting an EIGRP problem on a router and needs to confirm the IP addresses of the devices with which the router has established adjacency. The retransmit interval and the queue counts for the adjacent routers also need to be checked. What command will display the required information?
A. Router# show ip eigrp adjacency
B. Router# show ip eigrp topology
C. Router#show ip eigrp interfaces
D. Router#show ip eigrp neighbors
Correct Answer: D
QUESTION 2
What can be done to secure the virtual terminal interfaces on a router? (Choose two.)
A. Administratively shut down the interface.
B. Physically secure the interface.
C. Create an access list and apply it to the virtual terminal interfaces with the access-group command.
D. Configure a virtual terminal password and login process.
E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.
Correct Answer: DE
QUESTION 3
Which protocol provides a method of sharing VLAN configuration information between two Cisco switches?
A. STP
B. VTP
C. 802.1Q
D. RSTP
Correct Answer: B
QUESTION 4
Which two of these statements regarding RSTP are correct? 200-105 dumps (Choose two.)
A. RSTP cannot operate with PVST+.
B. RSTP defines new port roles.
C. RSTP defines no new port states.
D. RSTP is a proprietary implementation of IEEE 802.1D STP.
E. RSTP is compatible with the original IEEE 802.1D STP.
Correct Answer: B,E
QUESTION 5

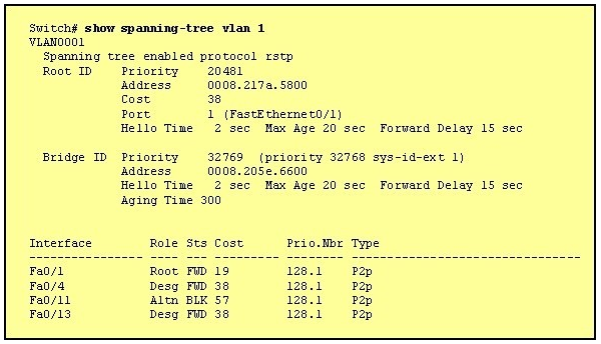

Refer to the exhibit.
Why has this switch not been elected the root bridge for VLAN1?
A. It has more than one interface that is connected to the root network segment.
B. It is running RSTP while the elected root bridge is running 802.1d spanning tree.
C. It has a higher MAC address than the elected root bridge.
D. It has a higher bridge ID than the elected root bridge.
Correct Answer: D
QUESTION 6

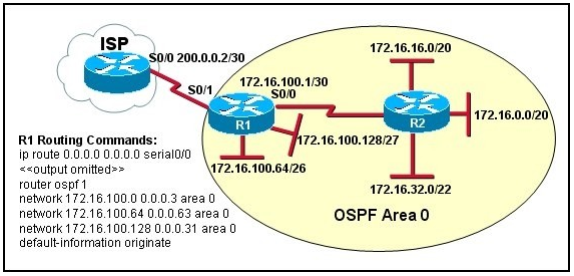

Refer to the exhibit.
Assume that all of the router interfaces are operational and configured correctly. 200-105 dumps How will router R2 be affected by the configuration of R1 that is shown in the exhibit?
A. Router R2 will not form a neighbor relationship with R1.
B. Router R2 will obtain a full routing table, including a default route, from R1.
C. R2 will obtain OSPF updates from R1, but will not obtain a default route from R1.
D. R2 will not have a route for the directly connected serial network, but all other directly connected networks will be present, as well as the two Ethernet networks connected to R1.
Correct Answer: A
QUESTION 7
Which term describes a spanning-tree network that has all switch ports in either the blocking or fowarding state?
A. converged
B. redundant
C. provisioned
D. spanned
Correct Answer: A
QUESTION 8
What are two characteristics of a switch that is configured as a VTP client? (Choose two.)
A. If a switch that is configured to operate in client mode cannot access a VTP server, then the switch reverts to transparent mode.
B. On switches that are configured to operate in client mode, VLANs can be created, deleted, or renamed locally.
C. The local VLAN configuration is updated only when an update that has a higher configuration revision number is received.
D. VTP advertisements are not forwarded to neighboring switches that are configured in VTP transparent mode.
E. VTP client is the default VTP mode.
F. When switches in VTP client mode are rebooted, they send a VTP advertisement request to the VTP servers.
Correct Answer: C,F
QUESTION 9
Which two states are the port states when RSTP has converged? (Choose two.)
A. discarding
B. listening
C. learning
D. forwarding
E. disabled
Correct Answer: A,D
QUESTION 10
Which type of EIGRP route entry describes a feasible successor?
A. a backup route, stored in the routing table
B. a primary route, stored in the routing table
C. a backup route, stored in the topology table
D. a primary route, stored in the topology table
Correct Answer: C
QUESTION 11
Which three statements are typical characteristics of VLAN arrangements? 200-105 dumps (Choose three.)
A. A new switch has no VLANs configured.
B. Connectivity between VLANs requires a Layer 3 device.
C. VLANs typically decrease the number of collision domains.
D. Each VLAN uses a separate address space.
E. A switch maintains a separate bridging table for each VLAN.
F. VLANs cannot span multiple switches.
Correct Answer: B,D,E
QUESTION 12
Which statement about QoS default behavior is true?
A. Ports are untrusted by default.
B. VoIP traffic is passed without being tagged.
C. Video traffic is passed with a well-known DSCP value of 46.
D. Packets are classified internally with an environment.
E. Packets that arrive with a tag are untagged at the edge of an administrative domain.
Correct Answer: E
